AXINDUS HIFLEX-CY Control Cable, 4 Cores, 0.25 mm², LIYCY, Screened, 50m, Grey PVC Sheath, 23 AWG, 90410025C50
Technical Document
Specifications
Brand
AXINDUSSeries
HIFLEX-CY
Number of Cores
4
Cross Sectional Area
0.25 mm²
Screened/Unscreened
Screened
Length
50m
Control Cable Type
LIYCY
Cable Shape
Multi-Conductor
Sheath Colour
Grey
American Wire Gauge
23 AWG
CPR Certification
Eca
Outer Diameter
4.6mm
Sheath Material
PVC
Standards Met
Euroclass Eca
Conductor Resistance
79.9 Ω/km
Insulation material
PVC
Current Rating
3A
Fire Behaviour
Flame Retardant NF C 32-070/C2, IEC 60332-1
Minimum Operating Temperature
-30°C
Oil Resistant
No
Minimum Bend Radius
8 x Diameter
Conductor Material
Bare Copper
Voltage Rating
300 V
Earth Cable
No
Screen Type
Tinned Copper Braid
Maximum Operating Temperature
+70°C
Country of Origin
Turkey
Product details

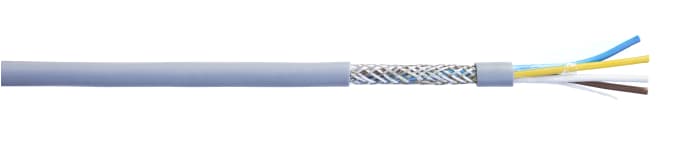

Hi-FLEX-CY Screened Test Cables (Type LiYCY)
Hi-FLEX®-CY cables are screened test and control cables adapted for data transmission within electronics and automated or measurement systems.
Features and Benefits
• A tinned copper braid protects against electromagnetic interference
• Assembly: spiral with concentric layers, and PES tape
• General screening via tinned copper braid, cover 85% + PES tape
Standards
IEC 60332-1
Screened Test Cables (Type LiYCY)
