RS PRO Plug In Power Relay, 12V dc Coil, 10A Switching Current, DPDT
Technical Document
Specifications
Brand
RS ProCoil Voltage
12V dc
Contact Configuration
DPDT
Mounting Type
Plug In
Switching Current
10A
Number of Poles
2
Latching
No
Terminal Type
Plug In
Maximum Switching Voltage AC
250V ac
Maximum Switching Voltage DC
30V dc
Length
36mm
Coil Power
300W
Minimum Operating Temperature
-10°C
Height
53mm
Maximum Operating Temperature
+55°C
Isolation Coil To Contact
2.5kV ac
Depth
36mm
Life
100000 (Electrical) cycles, 10000000 (Mechanical) cycles
Contact Material
Silver Alloy
Standards Met
CE, CQC, CULus, RoHS Compliant
Maximum Switching Power AC
2.7VA
Maximum Switching Power DC
1.5 W
Application
General Purpose
Country of Origin
China
Product details

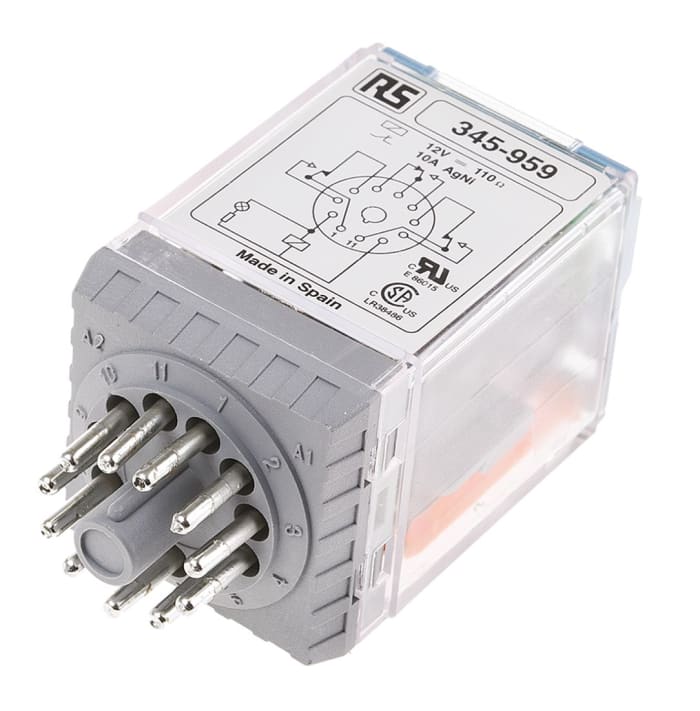

RS Pro RUB Series DPCO Octal Relays
RS Pro RUB series double pole general purpose octal relays with LED indicator can be used to increase the functions in electrical enclosures, useful for industrial applications, machine building and HVAC.
Double pole 10A octal relays
LED indicator
Gold plated contacts
Lockable test button and inspection window
Bases for assembly on DIN Rail to be ordered separately
