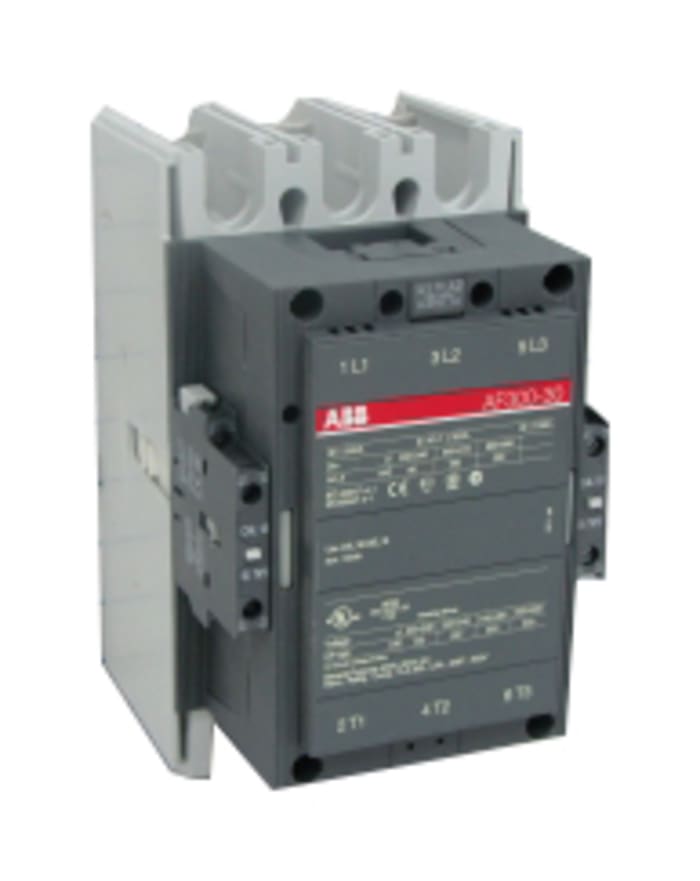

ABB AF265-30-11-13 AF Contactor, 230 V ac Coil, 3-Pole, 400 A, 132 kW, 3NO, 690 V ac
Technical Document
Specifications
Brand
ABBCoil Voltage
230 V ac
Number of Poles
3
Contact Voltage Rating
690 V ac
Contact Current Rating
400 A
Range
AF265-30-11-13
Series
AF
Power Rating
132 kW
Normal State Configuration
3NO
Number Of Auxiliary Contacts
2
Terminal Type
Lug Ring Terminal
Length
140mm
Width
225mm
Depth
180mm
Minimum Operating Temperature
-40°C
Pole and Throw Configuration
3P
Maximum Operating Temperature
+70°C
Country of Origin
Sweden
Product details
AF Range Contactors, 3 Pole
AF contactors are AC/DC operated
AF09-AF38 contactors include an electronic coil interface accepting a wide control voltage Ucmin - Ucmax. Only four coils cover control voltages 24 → 500 Vac or 20 → 500 Vdc
AF..Z contactors equipped with a Z coil type allow direct control by 24 Vdc, 500 mA PLC output and obtain a reduced holding coil consumption
AF.Z contactors withstand short dips and voltage interruptions (SEMI F47-0706 compliance)
AF40-AF96 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC and 220 V DC, these contactors are of the block type design with 3 main poles.
AF116-AF140 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC, AF146 up to 1000 V AC
AF190-AF370 contactors are mainly used for controlling 3-phase motors and power circuits up to 1000 V AC, these contactors are of the block type design with 3 main poles.
AF contactors have built in surge protection and does not require any additional surge suppressors
Standards
IEC 60947-1 / 60947-4-7 and EN 60947-1 / 60947-4-1
Stock information temporarily unavailable.
Please check again later.
€ 1,870.51
Each (ex VAT)
€ 2,225.91
Each (inc. VAT)
1
€ 1,870.51
Each (ex VAT)
€ 2,225.91
Each (inc. VAT)
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | € 1,870.51 |
| 5 - 9 | € 1,804.32 |
| 10 - 24 | € 1,735.28 |
| 25 - 49 | € 1,663.32 |
| 50+ | € 1,588.48 |
