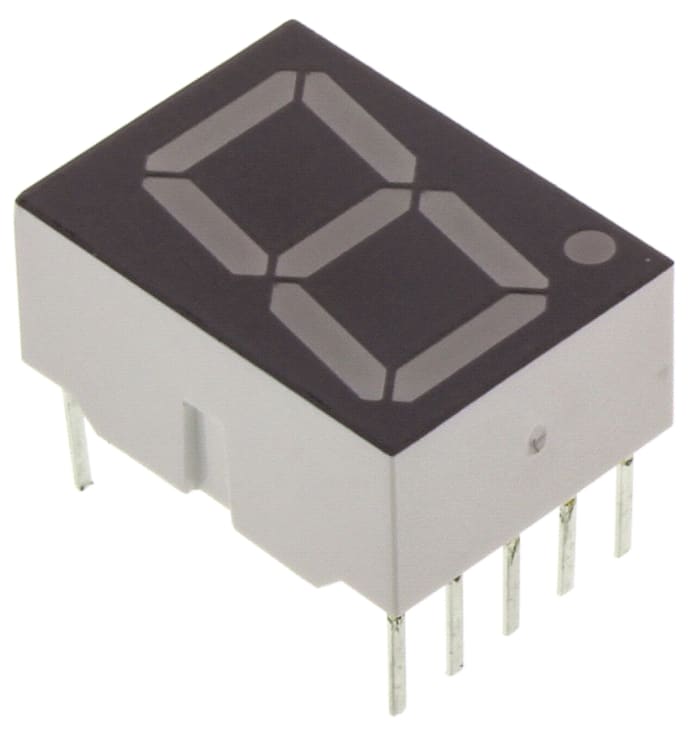

HDSP-N151 Broadcom 7-Segment LED Display, CA Red 14 mcd RH DP 20.3mm
Technical Document
Specifications
Brand
BroadcomDisplay Type
7-Segment
Number of Characters
1
LED Colours
Red
LED Colour(s)
Red
Number Of Segments
7
Dominant Wavelength
637 nm
Character Width
11.1mm
Character Height
20.3mm
Common Connection
Anode
Mounting Type
Through Hole
External Depth
8.4mm
External Dimensions
27.7 x 20 x 8.4mm
External Height
27.7mm
External Width
20mm
Luminous Intensity
14 mcd
Colour Of Face
Grey
Forward Voltage
1.8 V
Operating Temperature Range
-20 → +100°C
Forward Current
40mA
Maximum Operating Temperature
+100°C
Decimal Orientation
Right Side
Minimum Operating Temperature
-20°C
Product details
Single-digit 7-segment Red LED Displays
A range of single-digit 7-segment Red LED displays from Broadcom (Avago Technologies) in a variety of character heights. The range includes both left-hand and right-hand decimal point formats.
Broadcom 7-Segment LED Displays
€ 10.91
€ 10.91 Each (ex VAT)
€ 12.98
€ 12.98 Each (inc. VAT)
1
€ 10.91
€ 10.91 Each (ex VAT)
€ 12.98
€ 12.98 Each (inc. VAT)
1
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price |
|---|---|
| 1 - 9 | € 10.91 |
| 10 - 49 | € 8.27 |
| 50 - 99 | € 7.73 |
| 100 - 249 | € 7.07 |
| 250+ | € 6.50 |
