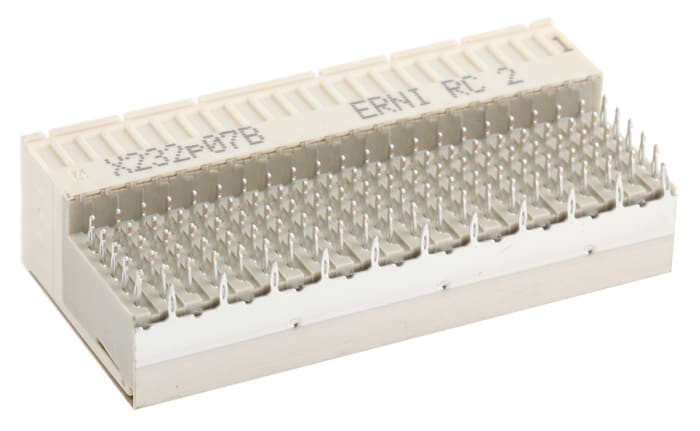

ERNI 110 Way Right Angle PCI Card Connector With Press-In Termination

RS Stock No.: 311-8306Brand: ERNIManufacturers Part No.: 064785
brand-logo
View all in Memory Card Connectors

Technical Document

Specifications

Brand

ERNI

Gender

Female

Number Of Contacts

110

Number Of Rows

5

Pitch

2mm

Body Orientation

Right Angle

Mounting Type

Through Hole

Contact Material

Phosphor Bronze

Contact Plating

Gold

Termination Method

Press-In

Housing Material

Liquid Crystal Polymer

Length

44mm

Width

11.4mm

Depth

21mm

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+125°C

Dimensions

44 x 11.4 x 21mm
