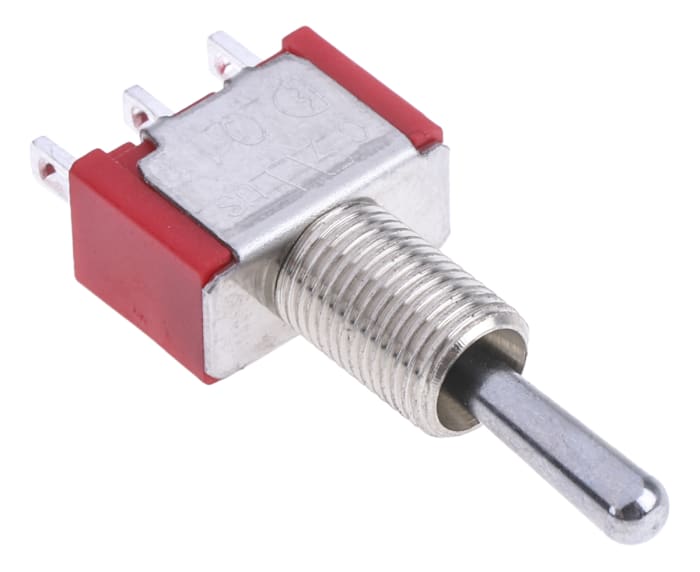

Grayhill Toggle Switch, Panel Mount, (On)-Off-(On), SPDT, Solder Terminal, 28 V dc, 250 V ac
Technical Document
Specifications
Brand
GrayhillContact Configuration
SPDT
Switch Operation
(On)-Off-(On)
Contact Current Rating
5 A
Mounting Type
Panel Mount
Terminal Type
Solder
Panel Cut Out Diameter
6.35mm
Actuator Length
10.41mm
Actuator Material
Chrome Plated Brass
Voltage Rating
28 V dc, 250 V ac
Contact Material
Copper Alloy, Silver Plated
Contact Resistance
10mΩ
Panel Cut Out Size
6.35mm
Maximum Operating Temperature
+85°C
Standards Met
RoHS, UL
Minimum Operating Temperature
-30°C
Operating Temperature Range
-30 → +85°C
Mechanical Life
40000 (Electrical)Operations
Country of Origin
China
Product details
Grayhill 34A Series Miniature Toggle Switches
The 34A series miniature toggle switches come with a choice of actuators, bushings and terminations making them suitable for many possible applications, especially for those where space is at a premium. Users can also select from a number of pole configurations including SPDT, DPDT, 3PDT and 4PDT. They are also extremely economical with an electrical life of 40,000 make-and-break cycles at full load reducing maintenance.
Features:
Save Space and Weight
SPDT, DPDT, 3PDT, and 4DPT Circuitry
Choice of Actuators, Bushings and Terminations
Contact rating: 5A at 125 Vac and 28 Vdc (resistive)
Operating temperature: -30 to +85 °C
Standards
UL Recognized
