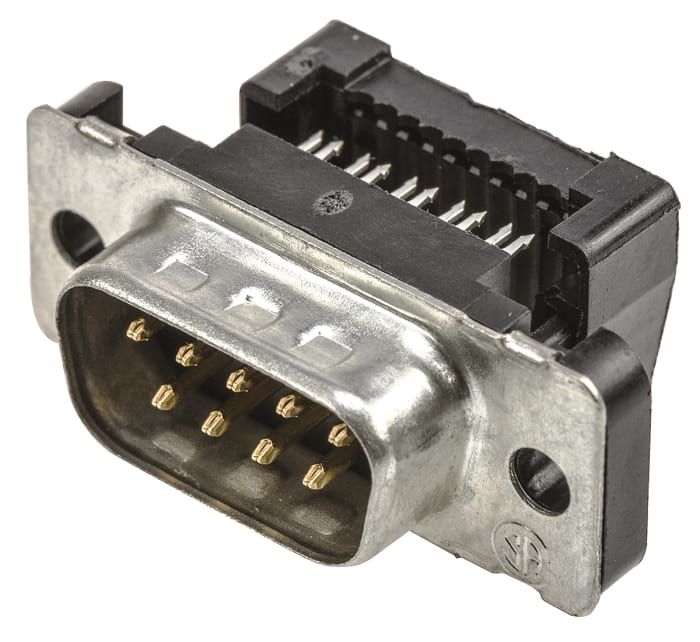

HARTING 9 Way Right Angle Cable Mount D-sub Connector Plug, 2.77mm Pitch
Technical Document
Specifications
Brand
HartingNumber Of Contacts
9
Gender
Male
Body Orientation
Right Angle
Mounting Type
Cable Mount
Pitch
2.77mm
Termination Method
IDC
Current Rating
7.5A
Housing Material
Steel
Length
30.8mm
Width
18.35mm
Depth
12.55mm
Dimensions
30.8 x 18.35 x 12.55mm
Contact Plating
Gold
Contact Material
Copper Alloy
Minimum Operating Temperature
-55.0°C
Maximum Operating Temperature
+125°C
Country of Origin
China
Product details
Harting 1.27mm DIN 41652 IDC D-Sub Connectors
A range of DIN 41652 IDC plug and socket d-sub connectors with a 1.27mm pitch, metal shell (plugs have metal shell with dimples) and 3.1mm diameter mounting holes.
Part numbers 0966xxx80000 are plastic strain reliefs for use with d-sub connectors.
Class II metal body, DIN 41652
Approvals
UL, E102079, CSA, File 98267
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 18.98
€ 18.98 Each (ex VAT)
€ 22.59
€ 22.59 Each (inc. VAT)
1
€ 18.98
€ 18.98 Each (ex VAT)
€ 22.59
€ 22.59 Each (inc. VAT)
Stock information temporarily unavailable.
1
Stock information temporarily unavailable.
| quantity | Unit price |
|---|---|
| 1 - 49 | € 18.98 |
| 50 - 99 | € 17.33 |
| 100 - 249 | € 15.66 |
| 250 - 499 | € 13.91 |
| 500+ | € 13.13 |
