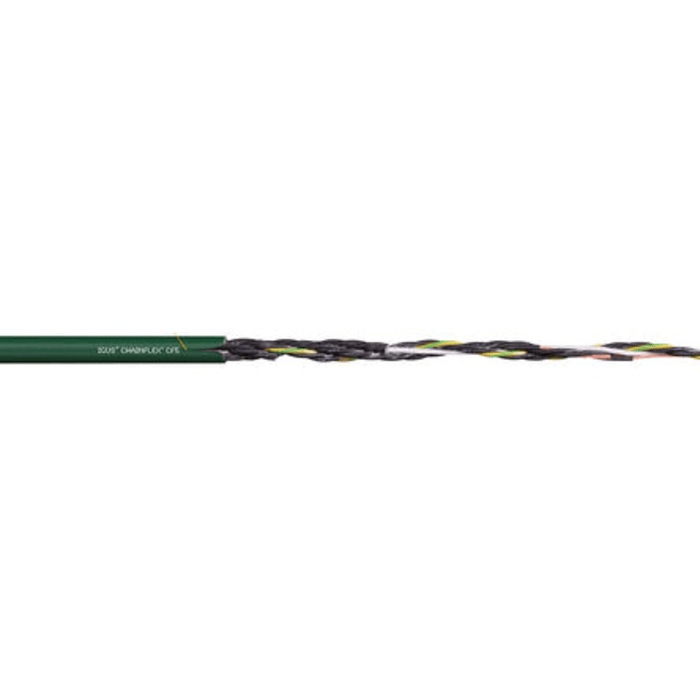

Igus Actuator/Sensor Cable, 25 Cores, 0.34 mm², Unscreened, Green PVC Sheath, 22 AWG

RS Stock No.: 765-4067Brand: IgusManufacturers Part No.: CF5.03.25
brand-logo
View all in Home

Technical Document

Specifications

Brand

Igus

Number of Cores

25

Cross Sectional Area

0.34 mm²

American Wire Gauge

22 AWG

Conductor Material

Bare Copper

Sheath Material

Polyvinyl Chloride PVC

Sheath Colour

Green

Screened/Unscreened

Unscreened

Minimum Bend Radius

4 x D

Outer Diameter

13.5mm

Voltage Rating

300/500 V

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-5°C

Oil Resistant

Yes

Insulation material

PP

Country of Origin

Germany

Product details

Chainflex® PVC Control Cable CF 5

Chainflex® PVC Control Cable CF 5 is used for high load requirements. Applications include: Storage and retrieval units for high-bay warehouses, machining units/packaging machines, quick handling and indoor cranes

Features and Benefits

• Preferably indoor applications, but also outdoor ones at temperatures +5 ºC
• Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (following EN 60228)
• Temperature moved from -5 ºC to 70 ºC
• Without influence of oil
• Torsion resistant
• Low-adhesion, oil-resistant mixture on the basis of PVC, adapted to suit the requirements in energy chains (following DIN VDE 0281 Part 13)
