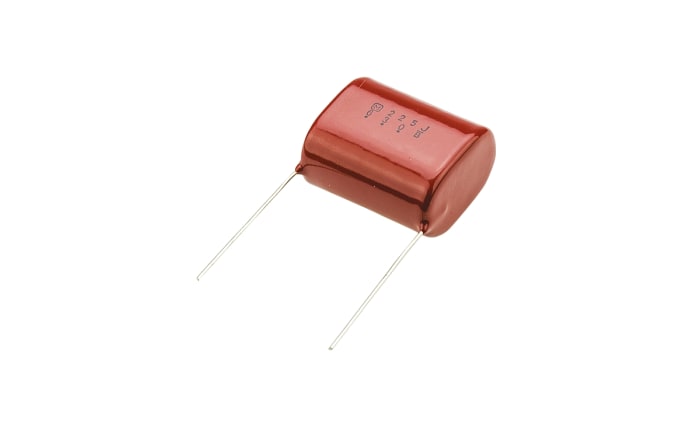

Nichicon XK Polyester Film Capacitor, 250 V ac, 630 V dc, ±10%, 2.2μF, Radial

RS Stock No.: 755-4557Brand: NichiconManufacturers Part No.: QXK2J225KTP
brand-logo
View all in Film Capacitors

Technical Document

Specifications

Brand

Nichicon

Capacitance

2.2µF

Voltage

250 V ac, 630 V dc

Mounting Type

Radial

Tolerance

±10%

Series

XK

Lead Pitch

27.5mm

Length

30.5mm

Depth

18.5mm

Equivalent Series Resistance

3000Ω

Height

28mm

Dimensions

30.5 x 18.5 x 28mm

Dielectric

Polyester

Terminal Type

Radial

Package/Case

5101-1

Lead Diameter

0.8mm

Maximum Operating Temperature

+105°C

Minimum Operating Temperature

-40°C

Country of Origin

Japan
