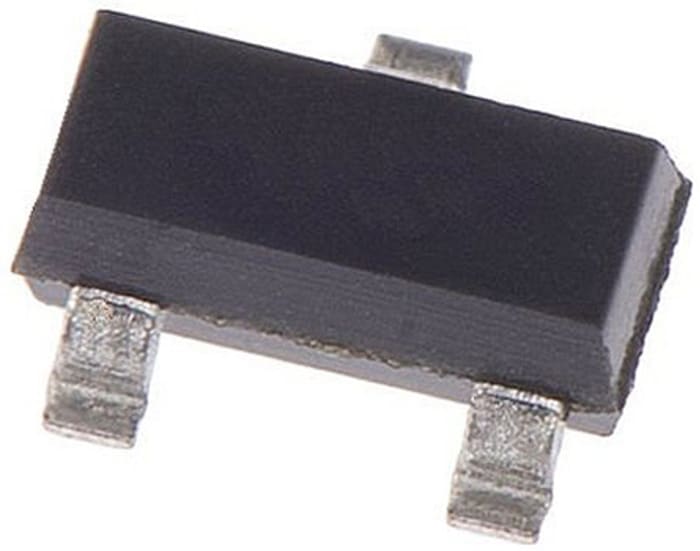

onsemi N-Channel MOSFET, 170 mA, 100 V, 3-Pin SOT-23 BSS123LT1G
Technical Document
Specifications
Brand
onsemiChannel Type
N
Maximum Continuous Drain Current
170 mA
Maximum Drain Source Voltage
100 V
Package Type
SOT-23
Mounting Type
Surface Mount
Pin Count
3
Maximum Drain Source Resistance
6 Ω
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
2.8V
Maximum Power Dissipation
225 mW
Transistor Configuration
Single
Maximum Gate Source Voltage
-20 V, +20 V
Width
1.3mm
Transistor Material
Si
Number of Elements per Chip
1
Length
2.9mm
Maximum Operating Temperature
+150 °C
Height
0.94mm
Minimum Operating Temperature
-55 °C
Product details
N-Channel Power MOSFET, 100V to 1700V, ON Semiconductor
MOSFET Transistors, ON Semiconductor
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 29.00
€ 0.29 Each (Supplied on a Reel) (ex VAT)
€ 34.51
€ 0.345 Each (Supplied on a Reel) (inc. VAT)
Production pack (Reel)
100
€ 29.00
€ 0.29 Each (Supplied on a Reel) (ex VAT)
€ 34.51
€ 0.345 Each (Supplied on a Reel) (inc. VAT)
Production pack (Reel)
100
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price | Per Reel |
|---|---|---|
| 100 - 240 | € 0.29 | € 2.90 |
| 250 - 490 | € 0.26 | € 2.60 |
| 500 - 990 | € 0.21 | € 2.10 |
| 1000+ | € 0.21 | € 2.10 |
