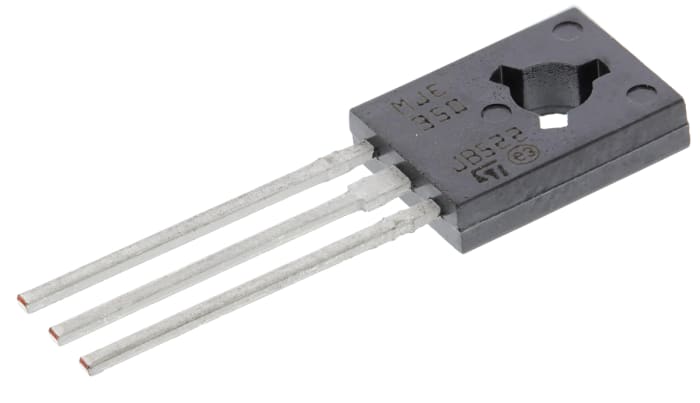

onsemi MJE350G PNP Transistor, -500 mA, -300 V, 3-Pin TO-225
Technical Document
Specifications
Brand
onsemiTransistor Type
PNP
Maximum DC Collector Current
-500 mA
Maximum Collector Emitter Voltage
-300 V
Package Type
TO-225
Mounting Type
Through Hole
Maximum Power Dissipation
20 W
Minimum DC Current Gain
30
Transistor Configuration
Single
Maximum Emitter Base Voltage
3 V
Pin Count
3
Number of Elements per Chip
1
Dimensions
11.04 x 7.74 x 2.66mm
Maximum Operating Temperature
+150 °C
Length
7.74mm
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 22.00
€ 1.10 Each (In a Pack of 20) (ex VAT)
€ 26.18
€ 1.309 Each (In a Pack of 20) (inc. VAT)
Standard
20
€ 22.00
€ 1.10 Each (In a Pack of 20) (ex VAT)
€ 26.18
€ 1.309 Each (In a Pack of 20) (inc. VAT)
Standard
20
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price | Per Pack |
|---|---|---|
| 20 - 180 | € 1.10 | € 22.00 |
| 200+ | € 0.97 | € 19.40 |
