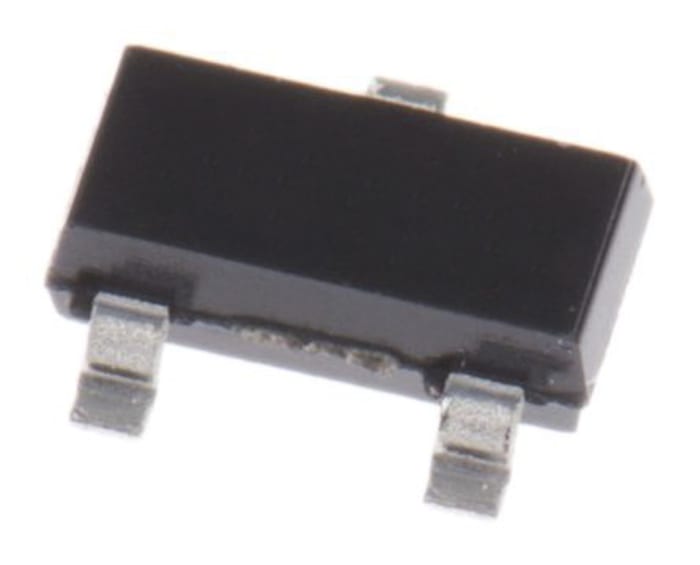

onsemi MMBT2222ALT1G NPN Transistor, 600 mA, 30 V, 3-Pin SOT-23

RS Stock No.: 184-0999Brand: onsemiManufacturers Part No.: MMBT2222ALT1G
brand-logo
View all in Bipolar Transistors

Technical Document

Specifications

Brand

onsemi

Transistor Type

NPN

Maximum DC Collector Current

600 mA

Maximum Collector Emitter Voltage

30 V

Package Type

SOT-23

Mounting Type

Surface Mount

Maximum Power Dissipation

225 mW

Minimum DC Current Gain

100

Transistor Configuration

Single

Maximum Collector Base Voltage

60 V

Maximum Emitter Base Voltage

5 V

Maximum Operating Frequency

100 MHz

Pin Count

3

Number of Elements per Chip

1

Dimensions

3.04 x 1.4 x 1.01mm

Maximum Operating Temperature

+150 °C

Stock information temporarily unavailable.

Please check again later.

Stock information temporarily unavailable.

€ 0.03

Each (On a Reel of 3000) (ex VAT)

€ 0.036

Each (On a Reel of 3000) (inc VAT)

onsemi MMBT2222ALT1G NPN Transistor, 600 mA, 30 V, 3-Pin SOT-23

€ 0.03

Each (On a Reel of 3000) (ex VAT)

€ 0.036

Each (On a Reel of 3000) (inc VAT)

onsemi MMBT2222ALT1G NPN Transistor, 600 mA, 30 V, 3-Pin SOT-23
Stock information temporarily unavailable.

Buy in bulk

quantityUnit pricePer Reel
3000 - 6000€ 0.03€ 90.00
9000 - 21000€ 0.03€ 90.00
24000 - 42000€ 0.03€ 90.00
45000 - 96000€ 0.03€ 90.00
99000+€ 0.03€ 90.00
