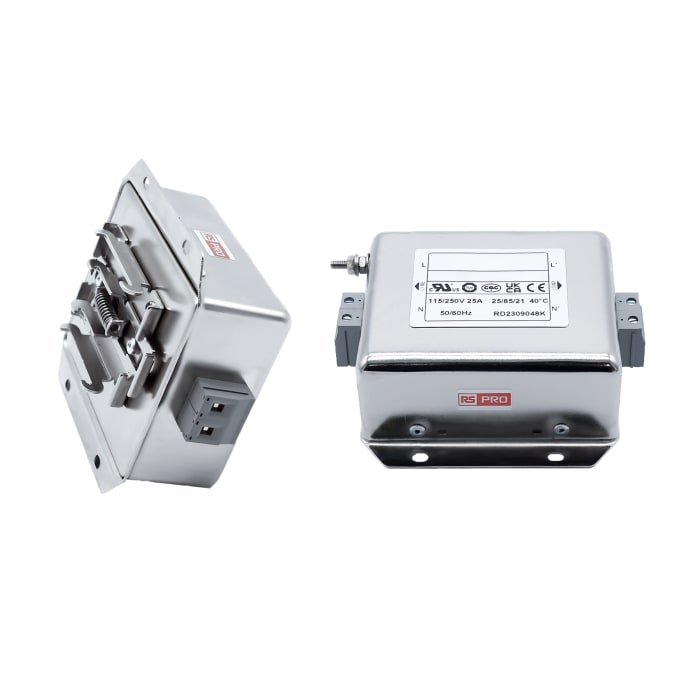

RS PRO 25A 250 V ac 50/60Hz, Chassis Mount Power Line Filter, Terminal Block Single Phase

RS Stock No.: 278-5149Brand: RS PRO
brand-logo
View all in Power Line Filters

Technical Document

Specifications

Brand

RS Pro

Maximum Current Rating

25A

Maximum Voltage Rating

250 V ac

Mounting Type

Chassis Mount

Termination Style

Terminal Block

Number of Phases

Single

Number of Stages

Single Stage

Operating Frequency

50/60Hz

Length

105mm

Depth

96mm

Capacitance

1.0uF, 10000pF

Height

41mm

Inductance

2 x 2.5mH

Dimensions

105 x 96 x 41mm

Minimum Operating Temperature

-25°C

Leakage Current

1.0/1.9mA

Maximum Operating Temperature

+85°C

Resistance

470kΩ

Country of Origin

China
