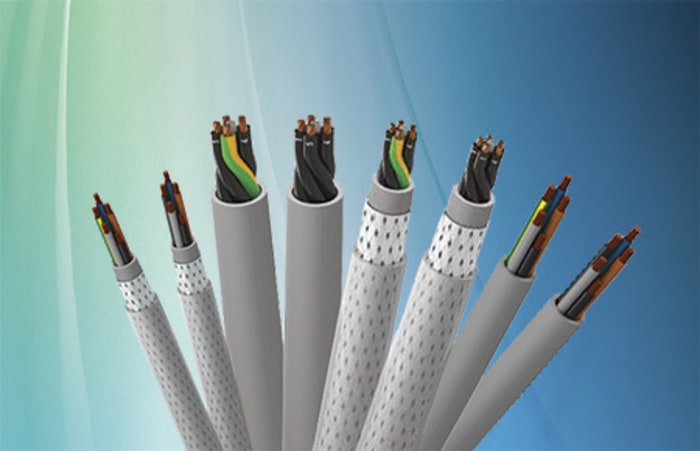

RS PRO Control Cable, 3 Cores, 0.75 mm², SY, Screened, 50m, Transparent PVC Sheath
Technical Document
Specifications
Brand
RS ProSeries
SY
Number of Cores
3
Cross Sectional Area
0.75 mm²
Conductor Material
Annealed Copper
Sheath Colour
Transparent
Sheath Material
PVC
Control Cable Type
SY
Armoured
Yes
Screened/Unscreened
Screened
Screen Type
Galvanised Steel
Length
50m
Outer Diameter
9.9mm
Minimum Bend Radius
6 x Diameter
Voltage Rating
300/500 V
Standards Met
BS EN 50525
CPR Certification
Eca
Maximum Operating Temperature
+70°C
Cable Shape
Multicore
Core Strands
24/0.2 mm
Insulation material
PVC
Bedding Material
PVC
Earth Cable
Yes
Minimum Operating Temperature
-15°C
Country of Origin
United Kingdom
Stock information temporarily unavailable.
Please check again later.
€ 94.62
€ 94.62 1 Reel of 50 Metres (ex VAT)
€ 112.60
€ 112.60 1 Reel of 50 Metres (inc. VAT)
