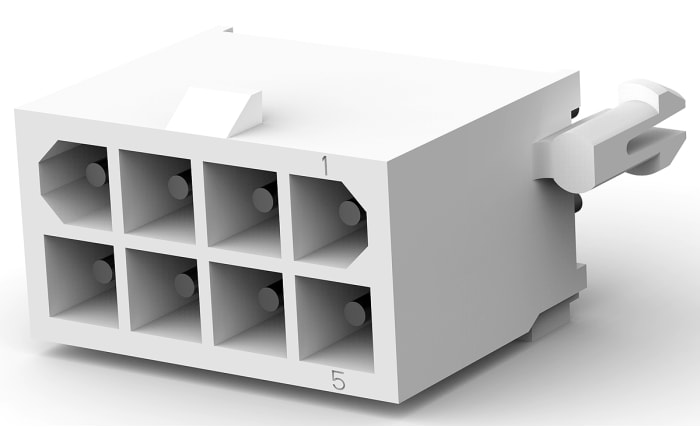

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header, 8 Contact(s), 4.14mm Pitch, 2

RS Stock No.: 720-2307Brand: TE ConnectivityManufacturers Part No.: 1-794073-0
brand-logo
View all in PCB Headers

Technical Document

Specifications

Series

Mini-Universal MATE-N-LOK

Pitch

4.14mm

Number Of Contacts

8

Number Of Rows

2

Body Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

Wire to Board

Mounting Type

Through Hole

Termination Method

Solder

Contact Plating

Tin

Contact Material

Brass

Current Rating

9.5A

Voltage Rating

600.0 V

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more
Stock information temporarily unavailable.

€ 2.53

€ 2.53 Each (ex VAT)

€ 3.01

€ 3.01 Each (inc. VAT)

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header, 8 Contact(s), 4.14mm Pitch, 2
Select packaging type

€ 2.53

€ 2.53 Each (ex VAT)

€ 3.01

€ 3.01 Each (inc. VAT)

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header, 8 Contact(s), 4.14mm Pitch, 2
Stock information temporarily unavailable.
Select packaging type

Stock information temporarily unavailable.

Please check again later.

quantityUnit price
1 - 24€ 2.53
25 - 99€ 2.30
100 - 499€ 1.98
500 - 999€ 1.59
1000+€ 1.54
