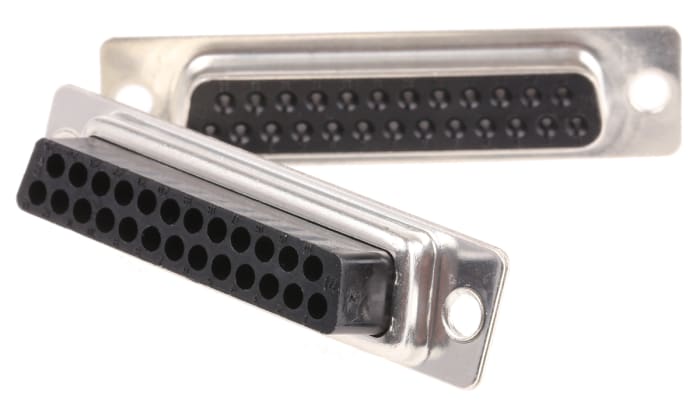

TE Connectivity Amplimite HDP-20 25 Way Cable Mount D-sub Connector Socket
Technical Document
Specifications
Brand
TE ConnectivityNumber Of Contacts
25
Gender
Female
Body Orientation
Straight
Mounting Type
Cable Mount
Termination Method
Crimp
Current Rating
3.7A
Housing Material
Steel
Voltage Rating
250.0 V
Length
53.03mm
Width
17.15mm
Depth
12.55mm
Dimensions
53.03 x 12.55 x 17.5mm
Series
AMPLIMITE HDP-20
Maximum Operating Temperature
+105°C
Minimum Operating Temperature
-55.0°C
Distrelec Product Id
30083821
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
Please check again later.
€ 3.18
€ 3.18 Each (ex VAT)
€ 3.78
€ 3.78 Each (inc. VAT)
1
€ 3.18
€ 3.18 Each (ex VAT)
€ 3.78
€ 3.78 Each (inc. VAT)
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 24 | € 3.18 |
| 25 - 99 | € 2.67 |
| 100 - 249 | € 2.47 |
| 250 - 499 | € 2.37 |
| 500+ | € 2.17 |
