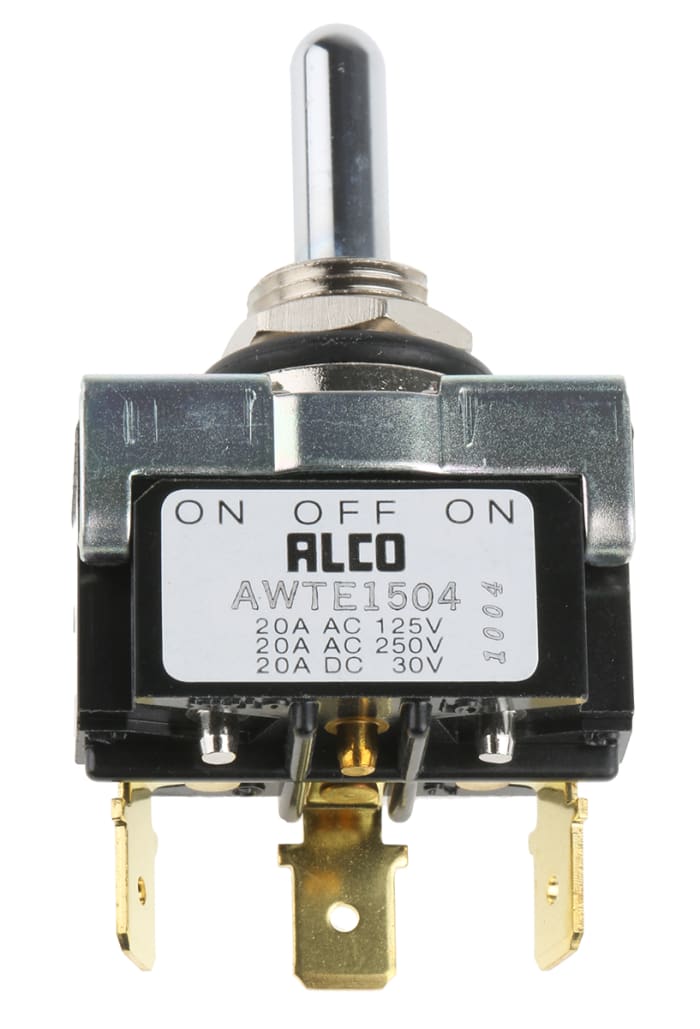

TE Connectivity Toggle Switch, Panel Mount, On-Off-On, SPDT, Tab Terminal, 30 V dc
Technical Document
Specifications
Brand
TE ConnectivityProduct Type
Toggle Switch
Contact Configuration
SPDT
Switch Operation
On-Off-On
Switch Contact Current
20A
Mount Type
Panel
Terminal Type
Tab
IP Rating
IP67
Actuator Length
17.5mm
Contact DC Voltage
30V dc
Minimum Operating Temperature
-20°C
Actuator Material
Brass
Maximum Operating Temperature
70°C
Length
17.48mm
Standards/Approvals
RoHS
Series
AWT
Mechanical Life
40000Cycles
Product details
Waterproof IP67
Toggle switches with silver plated contacts sealed to prevent the ingress of dust or liquids
Connection via 250in. (1/4in.) receptacles or soldering
For biased operation ’(on)’ refers to momentary on position
Brass actuator and Glass Filled Polyester case
Approvals
UL; CSA
