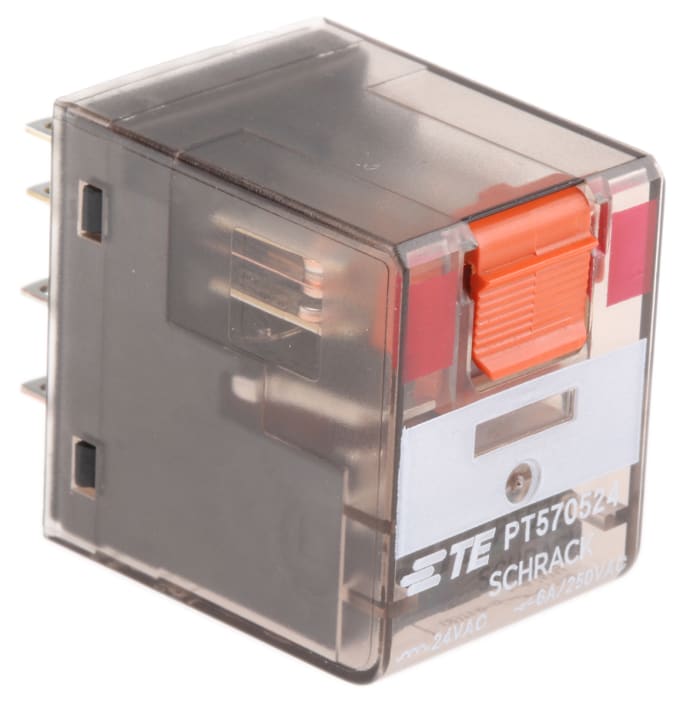

TE Connectivity PCB Mount Power Relay, 24V ac Coil, 6A Switching Current, 4PDT
Technical Document
Specifications
Brand
TE ConnectivityCoil Voltage
24V ac
Contact Configuration
4PDT
Mounting Type
PCB Mount
Switching Current
6A
Number of Poles
4
Latching
No
Series
PT
Terminal Type
Through Hole
Length
28mm
Coil Resistance
192Ω
Maximum Operating Temperature
+70°C
Depth
22.5mm
Height
30mm
Contact Material
Silver Nickel Alloy
Minimum Operating Temperature
-40°C
Maximum Switching Power AC
1.5 kVA
Application
Compact
Country of Origin
Austria
Product details
PT Series With Mechanical Indicator
Cadmium-free contacts
LED and mechanical indicator
Manual/ lockable test facility
Contact material: AgNi or Gold Plated
Mechanical life: AC; 2 x 107, DC; 3 x 107 or DC; 30 x 10⒍
Isolation coil to contact: 2.5kV(ac)
Dimensions: W22.5 x D28 x H29mm
