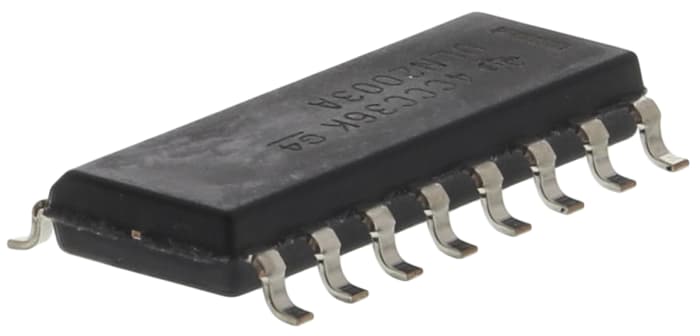

Texas Instruments ULN2003AD, 7-element NPN Darlington Transistor, 500 mA 50 V, 16-Pin SOIC
Technical Document
Specifications
Brand
Texas InstrumentsTransistor Type
NPN
Maximum Continuous Collector Current
500 mA
Maximum Collector Emitter Voltage
50 V
Maximum Emitter Base Voltage
50 V
Package Type
SOIC
Mounting Type
Surface Mount
Pin Count
16
Transistor Configuration
Common Emitter
Number of Elements per Chip
7
Maximum Collector Emitter Saturation Voltage
1.6 V
Height
1.58mm
Width
3.91mm
Minimum Operating Temperature
-20 °C
Dimensions
9.9 x 3.91 x 1.58mm
Maximum Operating Temperature
+70 °C
Length
9.9mm
Country of Origin
Malaysia
Product details
Darlington Transistor Arrays, Texas Instruments
A range of Darlington transistor arrays from Texas Instruments suitable for a wide range of medium to high current driver applications.
