TRACOPOWER Switching Power Supply, TXL 025-3.3S, 3.3V dc, 6A, 20W, 1 Output, 85 → 264V ac Input Voltage
Technical Document
Specifications
Brand
TRACOPOWEROutput Voltage
3.3V dc
Output Current
6A
Power Rating
20W
Number of Outputs
1
Input Voltage
85 → 264V ac
Mounting Type
Chassis Mount
Package Type
Enclosed
Length
93mm
Width
51mm
Embedded
No
Depth
28.5mm
Efficiency
72%
Series
TXL 025
Minimum Temperature
-20°C
Maximum Temperature
+70°C
Weight
180g
Country of Origin
Taiwan, Province Of China
Product details

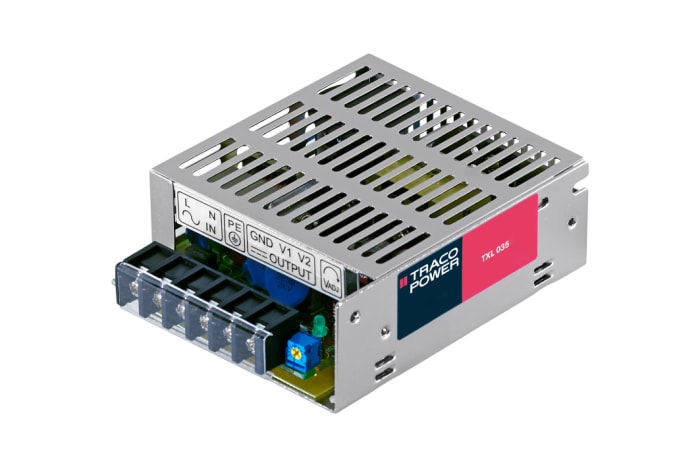

15W to 600W, Universal Input, Single/Multi Output, TXL Series
The TRACOPOWER TXL series is a family of encased power supplies, designed for a wide range of cost critical industrial applications. Wit a low profile metal case and screw terminal block connection they are easy to install in any equipment. These power supplies have Universal Input 85-240VAC and comply also with European EMC standards and the Low Voltage Directive (LVD). The high quality of this product is supported by a 3 year warranty.
Wide range universal input
Compact design, metal case
Easy installation - screw terminals
Short circuit and overvoltage protection
Power factor correction to EN 61000-3-2 (PFC)
EMI/EMC complies to EN 50081-1 and EN 50082-1
Approvals
UL, cUL, CB report
Standards
UL 60950-1, IEC 60950-1, EN 60950-1 2nd edition
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 55.65
€ 55.65 Each (ex VAT)
€ 66.22
€ 66.22 Each (inc. VAT)
1
€ 55.65
€ 55.65 Each (ex VAT)
€ 66.22
€ 66.22 Each (inc. VAT)
1
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price |
|---|---|
| 1 - 4 | € 55.65 |
| 5 - 9 | € 54.84 |
| 10 - 24 | € 53.93 |
| 25 - 49 | € 52.39 |
| 50+ | € 50.80 |
