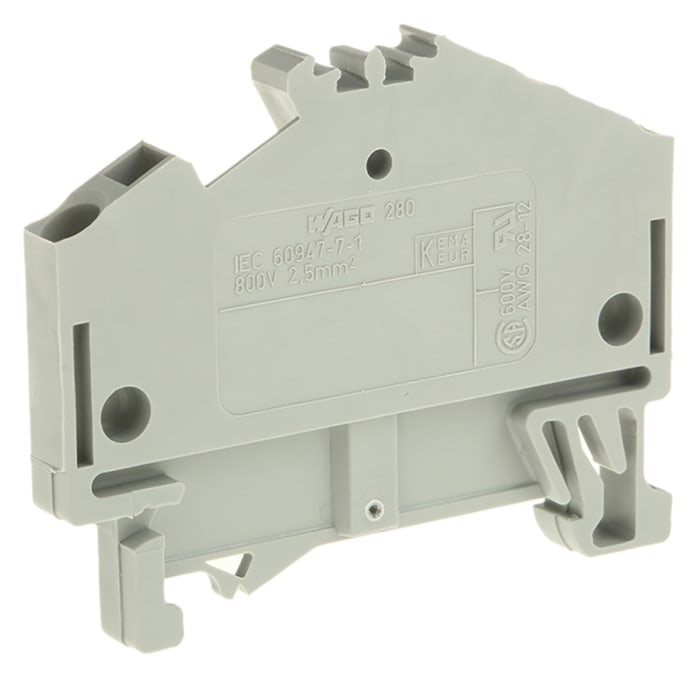

WAGO 280-681 280 Series Grey, 2.5mm², Single-Level, Cage Clamp Termination
Technical Document
Specifications
Brand
WagoColour
Grey
Number of Levels
Single
American Wire Gauge
28 → 12AWG
Series
280
Termination Method
Cage Clamp
Cable CSA
2.5mm²
Fused
No
Voltage Rating
800 V
Current Rating
24A
Minimum Operating Temperature
-60°C
Maximum Operating Temperature
+105°C
Standards Met
CSA
Distrelec Product Id
30423902
Country of Origin
Germany
Product details
Cage Clamp - 280 Series
Feed-through connections for mounting on DIN-type rails. These conductor-through terminals feature cage clamp technology for ultra-quick connection. The terminal blocks are front-wired.
Features and Benefits
• 28 - 12 AWG
• 800 V measured voltage
• 8 k V measured shock voltage
• 24 A Current intensity
• Front entry wiring type
• 2 connection points
• T S35 DIN Rail mounting
• Intermediate or end plates are also available
280 Series
€ 9.55
€ 1.91 Each (In a Pack of 5) (ex VAT)
€ 11.36
€ 2.273 Each (In a Pack of 5) (inc. VAT)
5
€ 9.55
€ 1.91 Each (In a Pack of 5) (ex VAT)
€ 11.36
€ 2.273 Each (In a Pack of 5) (inc. VAT)
5
Stock information temporarily unavailable.
Please check again later.
