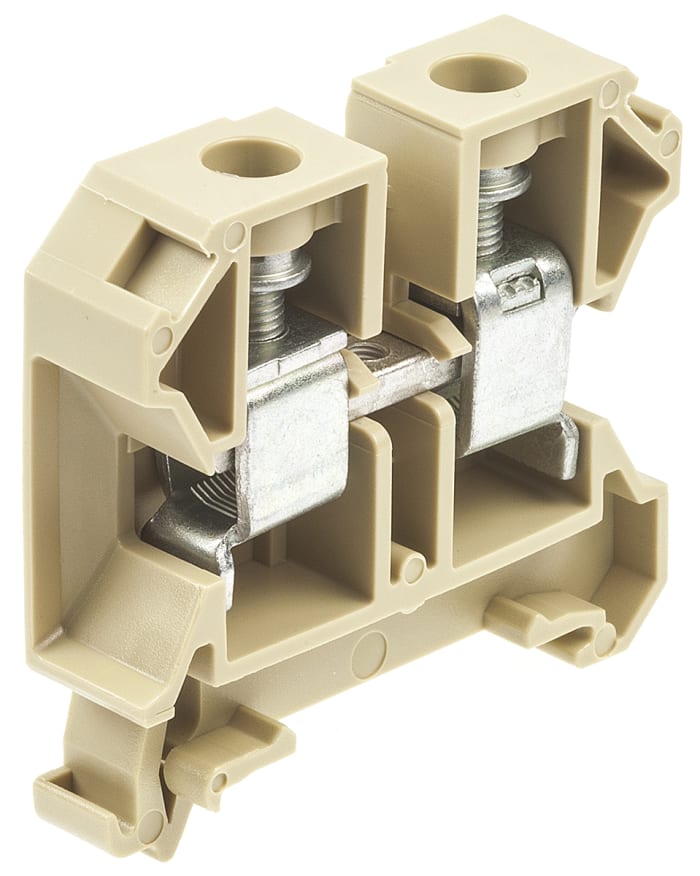

Weidmuller 0380760000 SAK 35/35 Series Beige, Yellow, 35mm², Single-Level, Feed Through Termination
Technical Document
Specifications
Brand
WeidmüllerColour
Beige, Yellow
Number of Levels
Single
American Wire Gauge
12 → 2AWG
Series
SAK 35/35
Termination Method
Feed Through
Cable CSA
35mm²
Voltage Rating
800 V
Current Rating
125A
Minimum Operating Temperature
-50°C
Maximum Operating Temperature
+100°C
Standards Met
IEC 60947-7-1
Country of Origin
Romania
Product details
SAK TS35 Range
High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and variety of designs, the SAK series from Weidmuller make planning easier and optimise safety. The terminals are manufactured from polyamide 6.6 with a working temperature of -50°C to +100°C, and meet the requirements of IEC 60947-1.
Features and Benefits
• AP SAK End plates available in 4 sizes to suit 2.5 mm² to 35 mm² terminals
• Partitions available in blue (RS 718-0923, RS 718-0926)
• Flammability class UL 94V-2
• Clamping yoke technology
Approvals
CSA certified, UL listed, NEMKO, ATEX, and IECEx
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
€ 157.10
€ 15.71 Each (In a Pack of 10) (ex VAT)
€ 186.95
€ 18.695 Each (In a Pack of 10) (inc. VAT)
10
€ 157.10
€ 15.71 Each (In a Pack of 10) (ex VAT)
€ 186.95
€ 18.695 Each (In a Pack of 10) (inc. VAT)
10
Stock information temporarily unavailable.
Please check again later.
