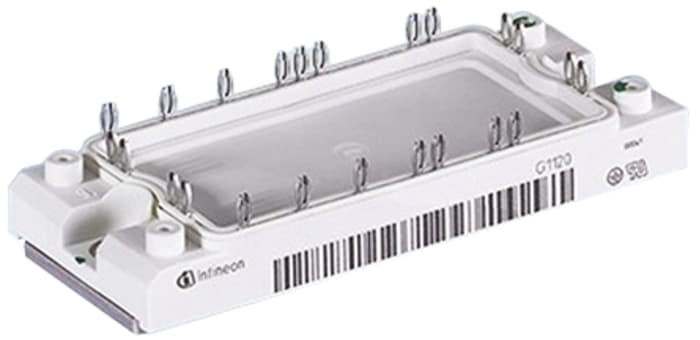

Infineon BSM25GP120 3 Phase Bridge IGBT Module, 45 A 1200 V, 24-Pin ECONO2, Screw Mount
Technical Document
Specifications
Brand
InfineonMaximum Continuous Collector Current
45 A
Maximum Collector Emitter Voltage
1200 V
Maximum Gate Emitter Voltage
±20V
Maximum Power Dissipation
230 W
Package Type
ECONO2
Configuration
3 Phase Bridge
Mounting Type
Screw Mount
Channel Type
N
Pin Count
24
Dimensions
107.5 x 45 x 17mm
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+125 °C
